| Place of Origin: | Made in China |
| Brand Name: | ANG |
| Certification: | CE,SGS,ISO,RoHs |
| Model Number: | AP-A11021 |
| Minimum Order Quantity: | 100 pieces |
|---|---|
| Price: | Depending on chip, material and printing |
| Packaging Details: | plastic bags wuth carton outer box |
| Delivery Time: | 2~15 days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 1,000,000 pieces per month |
| Material: | ABS | Diameter: | 30mm |
|---|---|---|---|
| Hole Size: | 5mm | Thickness: | 4mm |
| Chip: | TK4100 | Frequency: | 125KHz |
| Applications: | Patrol, Identificate Packages And Vehicles | ||
| Highlight: | Contactless rfid tag,tamper proof rfid tags |
||

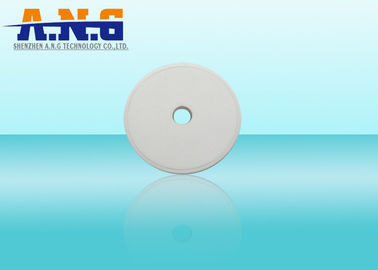

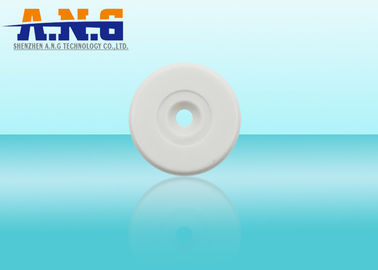

TK4100 ABS White Round RFID Smart Key Tag For Patrol Guard Tour System
Specification:
1. ABS RFID Coin Tag Patrol Guard Tour Tag
2. Material: ABS
3. Chip:TK4100/EM4100/EM4305/T5577 etc
4. Available chip :S50/UL/F1108/2.etc
5. Frequency:125khz,13.56MHz,915MHz
6. Memory: 96bit/512bit/1K bit/1K byte
7. Read-Write Times: 100000
8. Working Temperature: -20 to 70 degrees
9. Read-Write Distance: More Than 3cm
10. Protocol: ISO 14443A/15693
11. Application: Entrance Guard, Stuff Administration, Cell Phone Tag, Phone Payment, Electronic Purse
| Keyword Name | RFID Patrol Tag |
| Packaging Meterial | PVC,PET |
| Size | 20mm,25mm,30mm or customized |
| IP Rating | Waterproof |
| Operating temperature | (-20 to +60) degrees Celsius |
| Storage temperature | (-20 to +65) degrees Celsius |
| Power Supply Mode | Passive |
| Reading range | depending on RFID technology and reader design |
| Surface Treatment | Do Glossy,Matte,Frosted and other processes |
| Available crafts | 4 color offset printing, magnetic stripe, embossing number, signature panel, photo, barcode, hot-stamping in gold or silver, scratch-off panel, serial number punch, hole punched, UV printing, ect. |
How it works:
1. The patrolling guard takes the reader and read his own Guard ID to identify himself with the system
2. Then the guards go to the checkpoints, the reader will automatically read each checkpoints and no need touch it. When reading successfully, a green led flash accompanied by a vibration means that a reading has been made. The GS-V5 reader will store the ID number and time for every checkpoint reading.
3. After patrolling tour is done, the guard connects the reader to the computer and download the tour to get a data analysis, reporting and management. The reader can store up to 60,000 records so it is not necessary to download then daily you can download weekly or monthly depends on your requirement. Once the data is downloaded from the reader to the PC it will erase from the reader automatically but will always be there on the PC so you can do back date and can look up old reports or activity.
If you are interested in this tag, please welcome to send us an inquiry!
