| Place of Origin: | Made in China |
| Brand Name: | ANG |
| Certification: | CE,SGS,RoHS,ISO9001 |
| Model Number: | AR-IBUTTON001 |
| Minimum Order Quantity: | 100 pieces |
|---|---|
| Price: | Depend on chip, material and printing |
| Packaging Details: | plastic bags with carton outer box |
| Delivery Time: | 2~15 days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 100,000 pieces per month |
| Keywords: | Ibutton Probe | Size: | Dia38mm |
|---|---|---|---|
| Capacity: | 8K Bits RAM~64k Bits RAM | Material: | Stainless Steel |
| Temperature: | -40ºC~+85ºC | Life Time: | Over 10 Years |
| Highlight: | ibutton holder,ibutton writer |
||

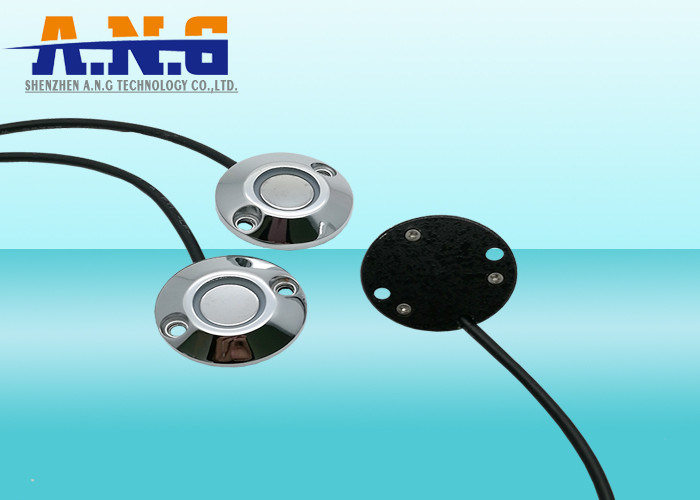

Durable Ibutton Probe key Reader with LED 3m Adhesive on Back
Located in Shenzhen,specialize in IButton products with years export experience, production capacity can up to 500,000pcs per month.
This iButton probe with LED provides the electrical contact necessary for the transfer of data to and from the DS19xx family of iButtons. The round probe shape provides a self-aligning interface that readily matches the circular rim of the iButton's MicroCan package. The solid metal contacts resist wear and are easy to keep clean.
The probe has no moving parts, making it a rugged interface for harsh environments. The round center contact of the ibutton probe houses the LED that is rated for maximum 20mA DC at 2.7V typical.
The probe comes with a brass nut for panel mounting. Since the body of the probe also forms the ground contact, the panel should be of non-conducting material to avoid ground loops. The 30cm cable with connector is provided for easy connection to the system microcontroller.
Product description
| Ibutton reader | Size | Dia38mm |
| OEM | Can be customized based on the actual samples or your 3D drawing | |
| Capacity | 8K bits RAM~64k bits RAM | |
| Temperature | -40ºC~+85ºC | |
| Life Time | Over 10 years | |
| Applications | * Access control, Hotel, Smart community, Fire alarm control; | |
| *Swimming pools,water patrol,field work is extremely humid environment. | ||
| Features | * Closed-loop wrist strap structure,flexible,easy to wear,easy to use. | |
| * Read time:350,000 times | ||
| Item name: | IButton Probe |
| Material: | Stainless steel |
| Key Features | |
| Solid metal read/write panel-mount probe for the iButton family | |
| Integrated green LED for user-feedback signaling | |
| Probe guides the entry of the iButton | |
| iButton slides over the surface to self-clean contacts | |
| Accessible shallow probe cavity simplifies removal of debris such as mud | |
| Probe suited for panels of up to 3mm thickness | |
| Metric design, prewired for easy installation | |
Details
- Solid metal read/write probe for touch memory button
- Probe guides the entry of touch memory
- Probe suited for panels thickness 2-3mm
- Contact made from:
Shell— Stainless steel 304
Data pole— 304 stainless steel
- Pre-wired for wasy installation:
- Wire— 17*0.14 copper wire, 4mm tinplating
- Lug plate--silver plating
- LED Current is MAX20mA.
- Installation: can be easily installed on doors, exterior design size and information card just coincide, reading card is very sensitive
If you are interested in this ibutton key reader, please welcome to send us an inquiry!
