| Place of Origin: | Shenzhen, CHINA |
| Brand Name: | A.N.G |
| Certification: | CE,ISO, SGS，ROHS |
| Model Number: | AC-TM104 |
| Minimum Order Quantity: | 500pcs |
|---|---|
| Price: | Depending on the chip, material, printing |
| Packaging Details: | 200pcs/box,2000pcs/carton,10000pcs 63KG |
| Delivery Time: | 7-15 Days |
| Payment Terms: | T/T, Paypal,Western Union, MoneyGram |
| Supply Ability: | 1000,000pcs per month |
| Brand Name: | A.N.G | Item Type: | TM Card / IB Card |
|---|---|---|---|
| Material: | Stainless Steel 、ABS | Diamension: | Dia5.89mm * 16.25mm |
| Intend For: | RW1990、 DS1990A-F5, DS1990R, DS1990A-F3 | Unit Weight: | About 4g |
| Color: | Red，Green，blue，yellow，black，etc | Failure Rate: | 1 /100,000 Times ( Used Properly) |
| Highlight: | ibutton ring,ibutton writer |
||

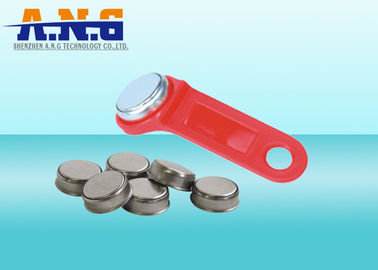

Rugged TM card Ibutton Key Fob for common area entry doors
Description
The provided iButton key is manufactured by A.N.G with DS1990A chip . Each button is factory lasered with a guaranteed unique 64-Bit Serial NO. for traceability. It’s sealed with stainless-steel shell with strong anti-water/shake/rust/water/corrosion capability.
A.N.G's iButton devices are small, durably packaged modules with globally unique digital addresses. Enhanced by A.N.G's 1-Wire communications protocol, they provide the ability to deliver or record data where other products cannot, such as in very harsh environments. An iButton device is ideal for any application where information needs to follow a person or object, such as temperature and humidity data logging, access control, asset tracking, and electronic cash (eCash) transactions.
IButton devices offer a simple, secure way of identifying assets. Each iButton device has a unique 64-bit address that can be used as an electronic serial number that is never duplicated. Additionally, onboard memory of up to 32kB gives assets their own personalized database. This database enables storage of unique information about each asset, including maintenance records and inventory management information that are permanently affixed to each asset.
Wear-tested to last 10 years, iButton devices bring unparalleled durability to asset- and data-management applications—even in harsh industrial and outdoor environments.
Feature:
|
TM Key |
Size | Handle L40mm*W15mm | |
| Ibutton | Size | Dia17mm*6mm | |
| Wristband | Size | Band dia 65mm,stretchable | |
| Material | Stainless steel + ABS/PPC | ||
| Color | Full color,customized welcome | ||
| Date Save | Over 10 years | ||
| Sample | Available upon request | ||
| Capacity | 64 bit serial number | ||
| OEM | Can be customized based on the actual samples or your 3D drawing | ||
|
Application |
Access control/Guard Tour System/Security Patrol/Sauna door locks/electronic door locks | ||
| RFID IC Support: | |||
| Chip name | RW1990, DS1990A-F5, DS1990R, DS1990A-F3 | ||
|
Features |
Upgrade of DS1990 allows multiple Serial | ||
| Number IButtons to reside on a common bus | |||
| Low-cost electronic key for access control | |||
| Operating Range: 2.8V to 6.0V, -40℃to +85℃ | |||
| Can be read in less than 5ms | |||
Packing:
1. 100pcs/box, then 1000/2000/3000/5000 pcs in carton.
2. According to client's requirements
If you are interested in this ibutton key, please welcome to send us an inquiry!
